Technical Details

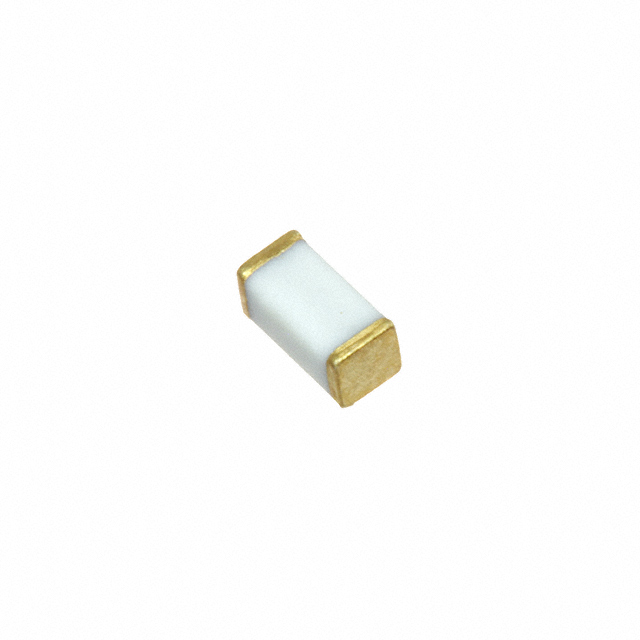

• Package / Case 1206 (3216 Metric)
• Size / Dimension 0.124" L x 0.059" W x 0.045" H (3.15mm x 1.50mm x 1.15mm)
• Fuse Type Board Mount (Cartridge Style Excluded)
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 125°C
• Response Time Fast Blow
• Approval Agency cULus, PSE
• DC Cold Resistance 0.1637 Ohms
• Breaking Capacity @ Rated Voltage 50A
• Current Rating (Amps) 1.25 A
• Voltage Rating - AC 125 V
• Voltage Rating - DC 125 V
• Melting I²t 0.30269
