- Product Model 224PPB102K
- Brand Cornell Dubilier / Illinois Capacitor
- RoHS Yes

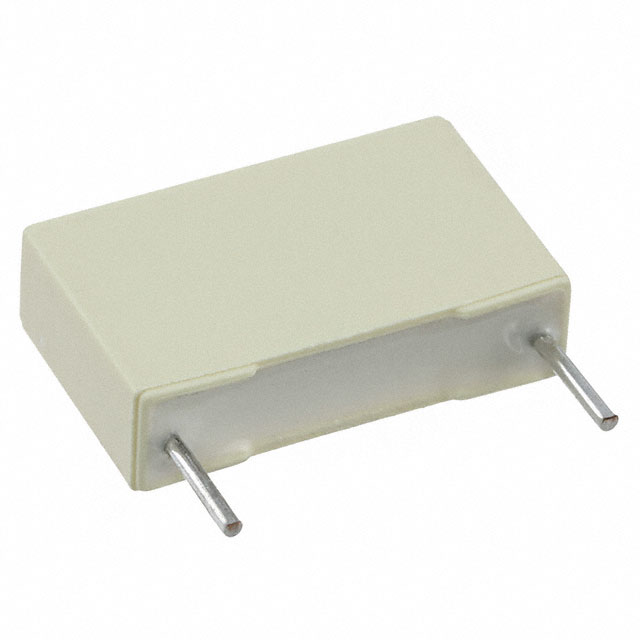

- Description CAP FILM 0.22UF 10% 1KVDC RADIAL
- Classification Film Capacitors
-
PDF
Inventory:5151
Technical Details
- Tolerance ±10%
- Package / Case Radial
- Mounting Type Through Hole
- Operating Temperature -55°C ~ 105°C
- Applications Commutation; High Pulse, DV/DT; Snubber
- Lead Spacing 1.083" (27.50mm)
- Termination PC Pins
- Dielectric Material Polypropylene (PP), Metallized
- Voltage Rating - AC 600V
- Voltage Rating - DC 1000V (1kV)
- Height - Seated (Max) 1.102" (28.00mm)
- Capacitance 0.22 µF
- Size / Dimension 1.260" L x 0.551" W (32.00mm x 14.00mm)
