Technical Details

• Tolerance ±10%

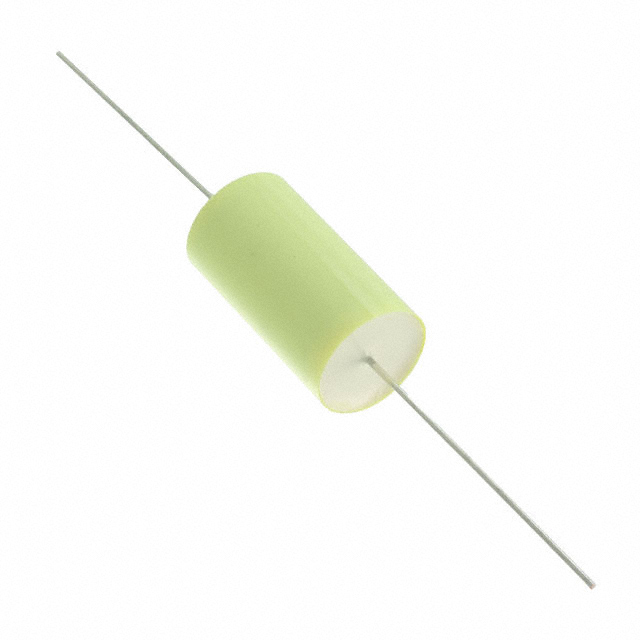

• Package / Case Axial
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 85°C
• Applications DC Link, DC Filtering; High Frequency, Switching; Snubber
• Termination PC Pins
• Dielectric Material Polypropylene (PP), Metallized
• Voltage Rating - AC 750V
• Voltage Rating - DC 3000V (3kV)
• Capacitance 0.1 µF
• ESR (Equivalent Series Resistance) 9.4 mOhms
• Size / Dimension 0.984" Dia x 1.811" L (25.00mm x 46.00mm)
