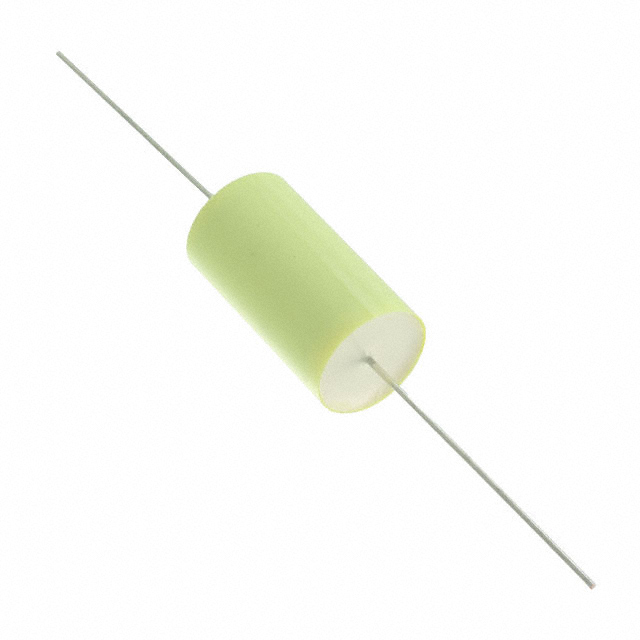

Technical Details

• Tolerance ±10%
• Package / Case Axial
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 85°C
• Applications DC Link, DC Filtering; High Frequency, Switching; Snubber
• Termination PC Pins
• Dielectric Material Polypropylene (PP), Metallized
• Voltage Rating - AC 550V
• Voltage Rating - DC 1200V (1.2kV)
• Capacitance 0.22 µF
• ESR (Equivalent Series Resistance) 5.4 mOhms
• Size / Dimension 0.768" Dia x 1.339" L (19.50mm x 34.00mm)
